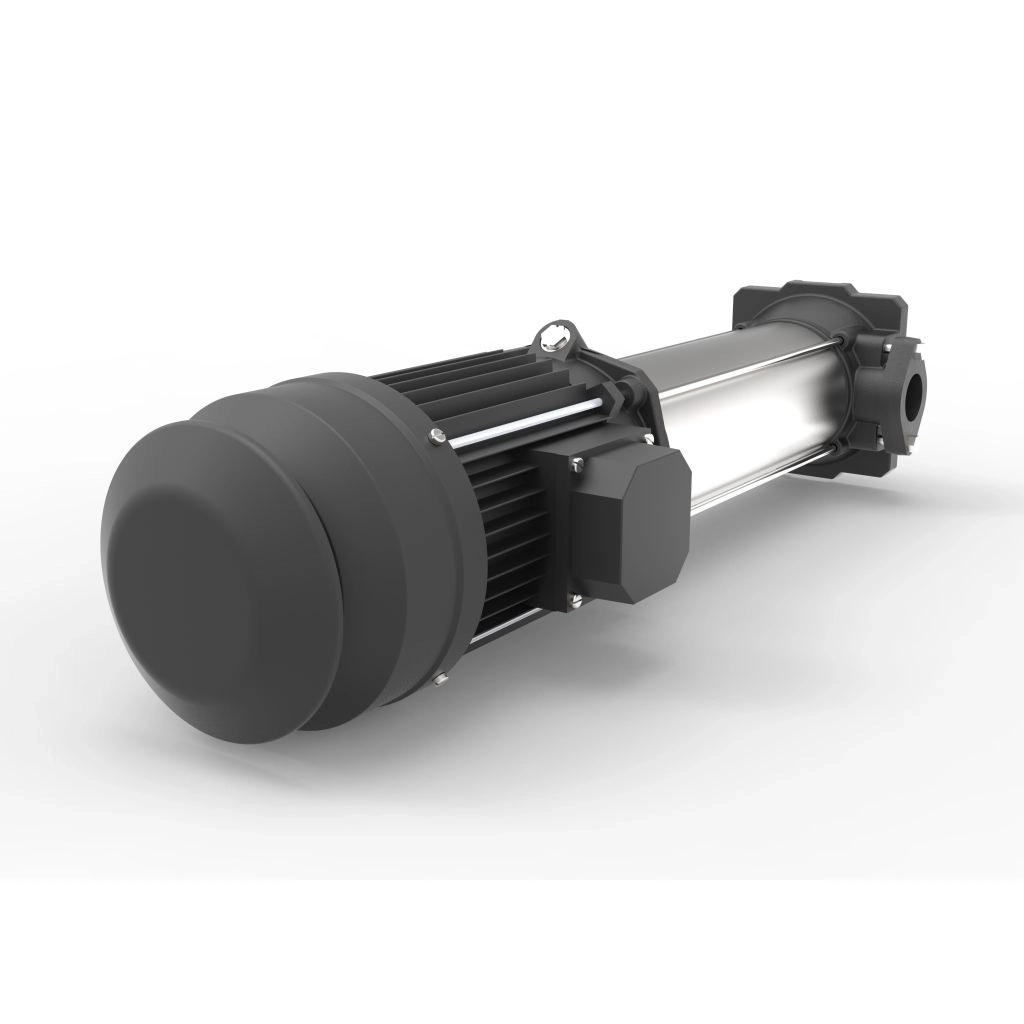

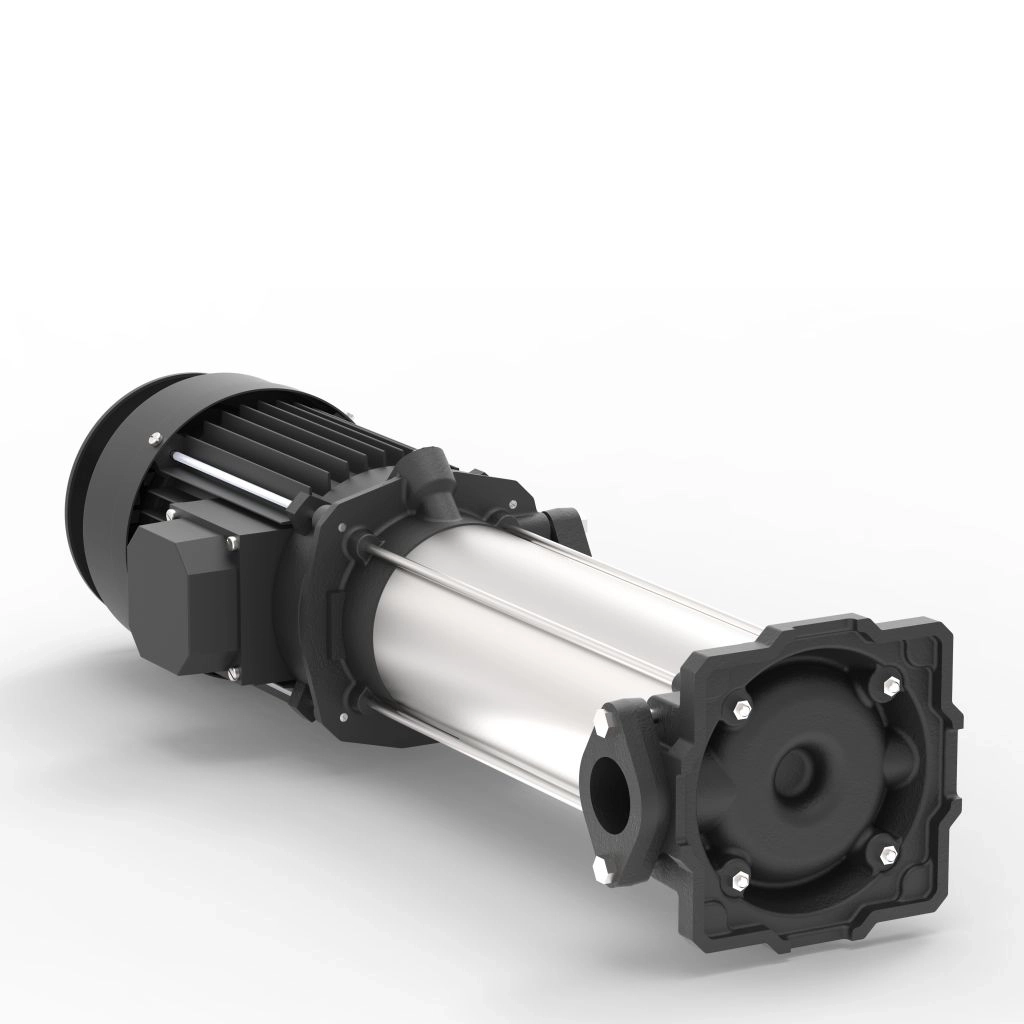

Vertical Multi-stage Centrifugal Pumps (MVR series)

Download Brochure

Features

Pump body shall be made of stainless steel & impellers shall be made of stainless steel AISI 304. Motor shaft is made of stainless steel AISI 420. Guide vane is made of glass reinforced PPO.
The pump is fitted with a maintenance-free, mechanical shaft seal.
Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.

Variety & Range

Flow range: 0.5 to 4 m³/h
Head range: up to 139 metres
Rating: 1 phase – 0.75 to 2.20 kW & 3 phase – 0.75 to 2.20 kW
Rated speed: 2900 rpm

Applications

Water Supply

Fire fighting

Industries
