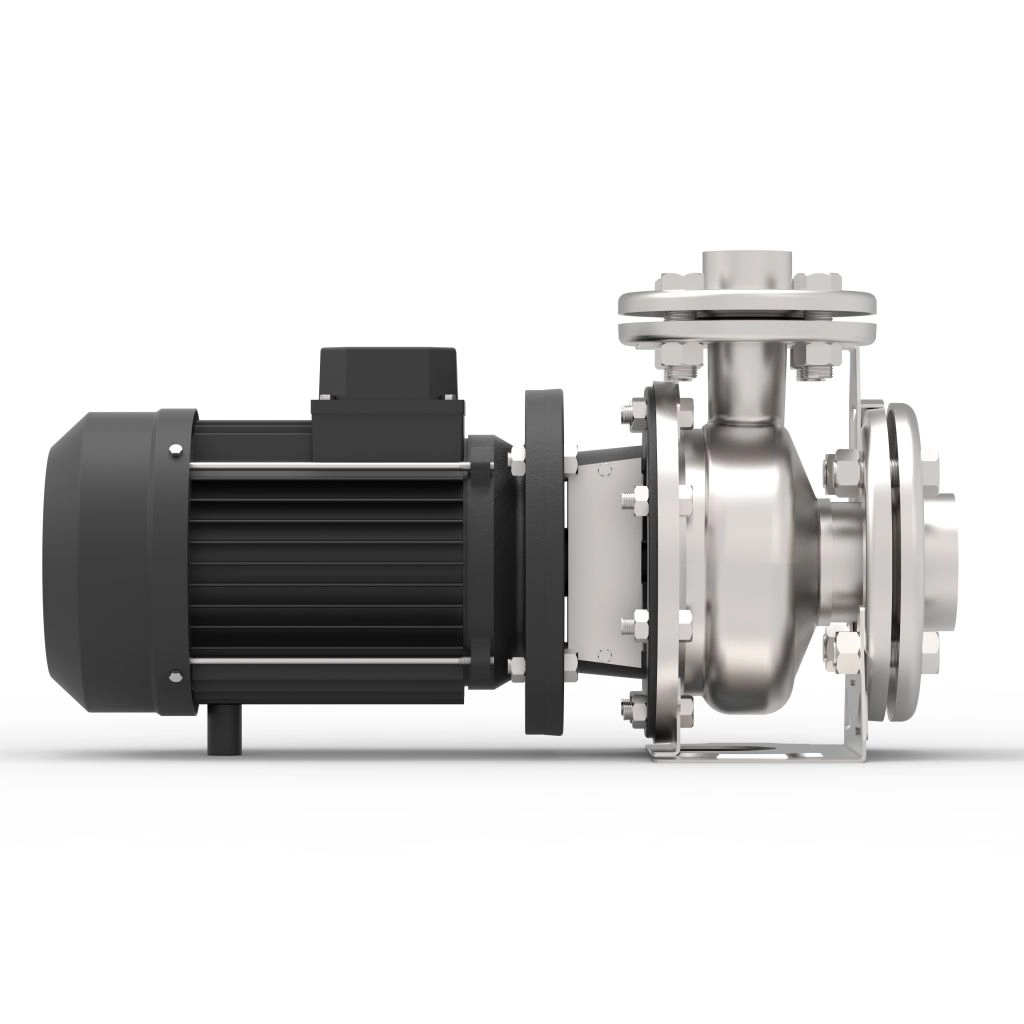

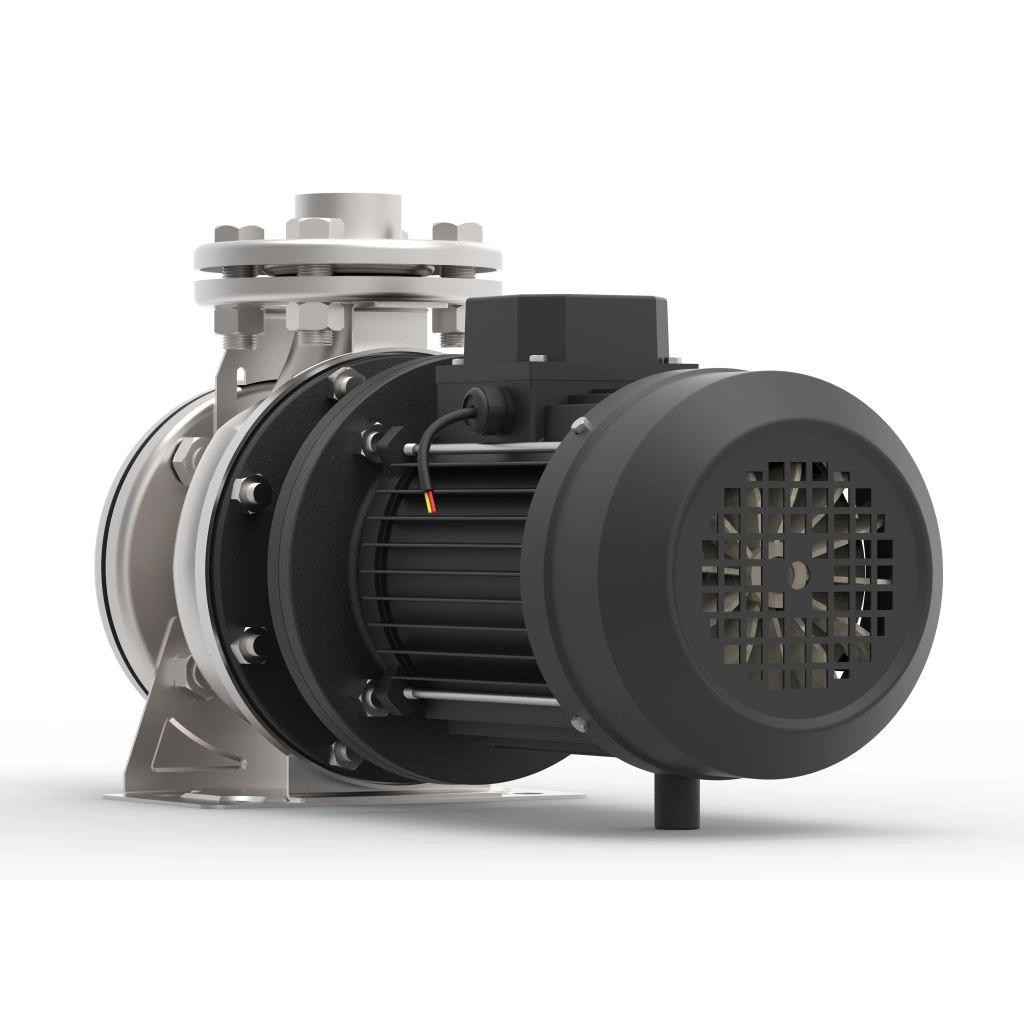

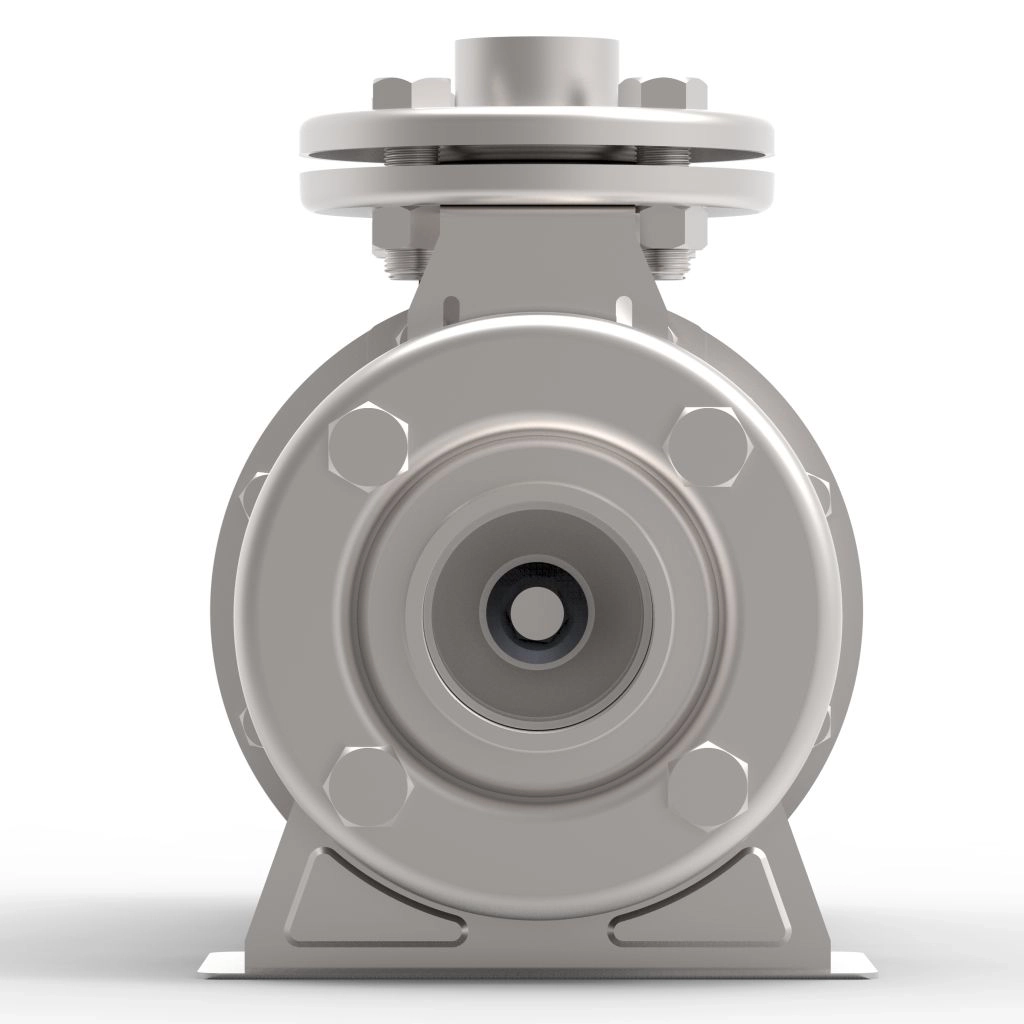

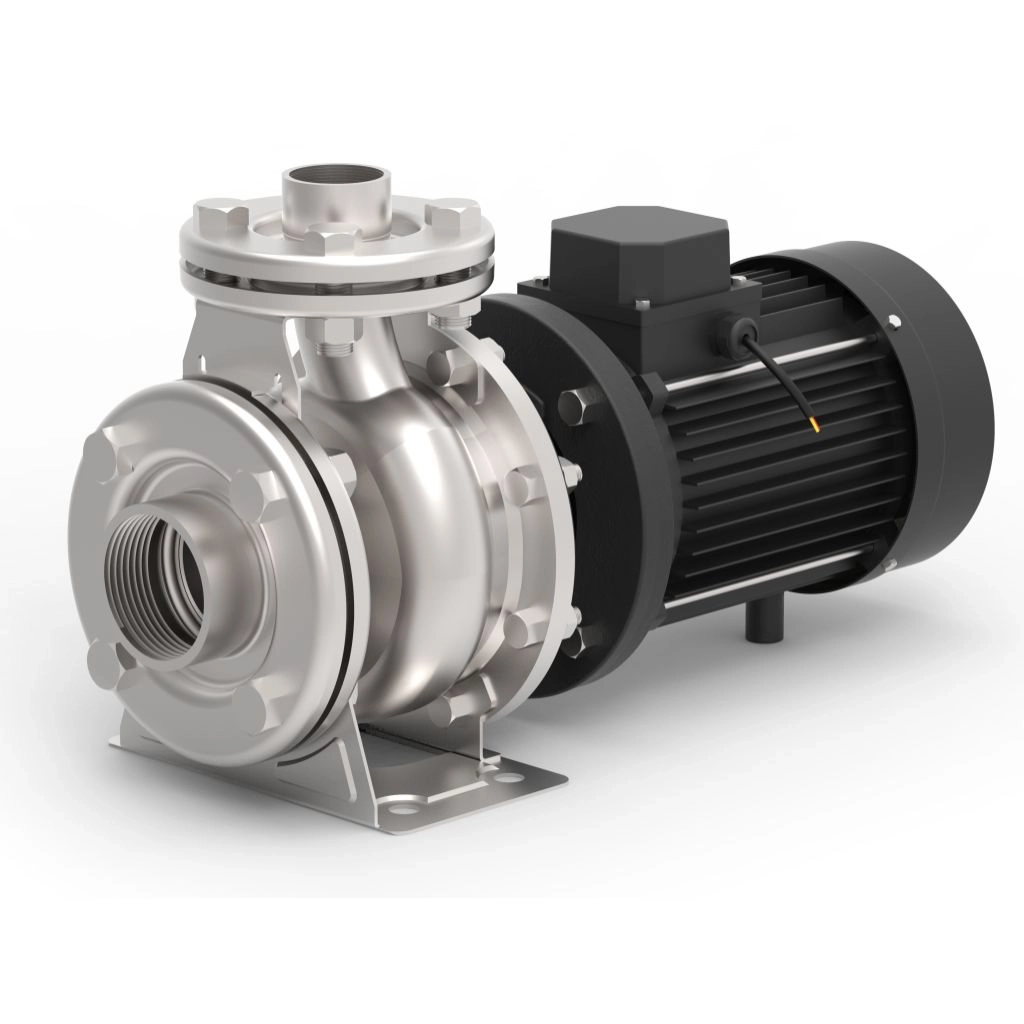

Close-coupled stainless steel centrifugal pumps (LCS series)

Features

  •  The pump casing, impeller and shaft shall have material of construction of fabricated AISI 304 sheet metal.
  •  The Pump shaft sealing will be by mechanical shaft seal of Carbon/SiC/Viton/AISI 316 construction suitable for 10 bar pressure rating and water temperature from 0 to +140 deg. C.

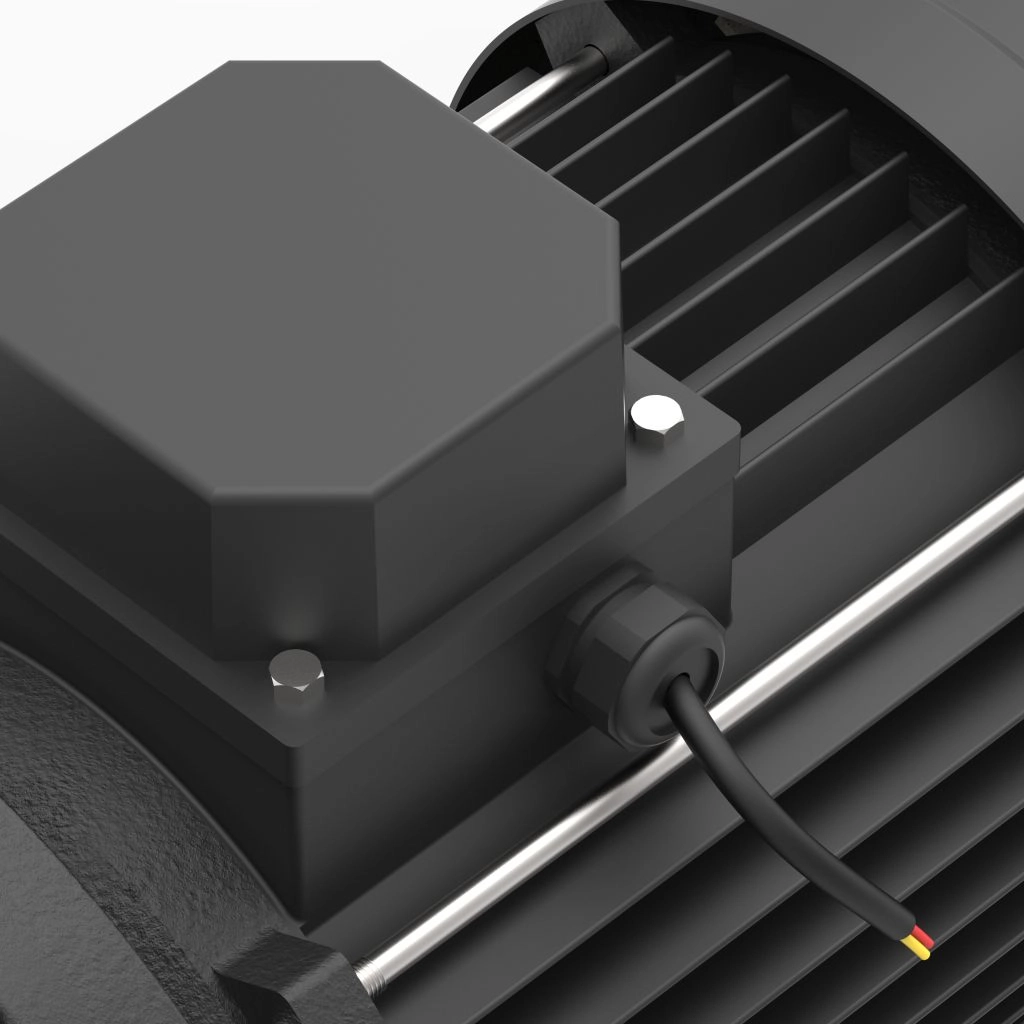

  •  The pump shall be close coupled with a totally enclosed fan cooled type (TEFC) Induction motor, with F class insulation, S1 duty and IP55 protection, suitable for 3 phase, 415 volts, 50 and 60 Hz power supply.
  •  The pump shall have back pull out design so as to enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.

Variety & Range

  • Flow range: up to 120 m³/h
  • Head range: up to 57 metres
  • Rating: 1.1 to 22 kW
  • Rated speed: 2900 rpm

Applications

Water Supply

Fire fighting

Civil & Construction

Mining

Air Conditioning Systems

Chemical Industry
